TELEDYNE EchoONE
Inertial Labs partnered with Teledyne Geospatial to launch EchoONE, a collaborative innovation that combines Teledyne’s Lidar and camera technology, with the RESEPI sensing solution that leverages our IMU and INS technology. Combining NDAA-compliant data security, lightweight design, and real-time operation to deliver long range, engineering-grade 3D point clouds, EchoONE will drive reliability and return on investment for sensor operators across multiple applications.
NDAA Compliant and Affordable
EchoONE is designed and manufactured in compliance with the latest NDAA requirements ensuring data security while competitively priced to less secure options.

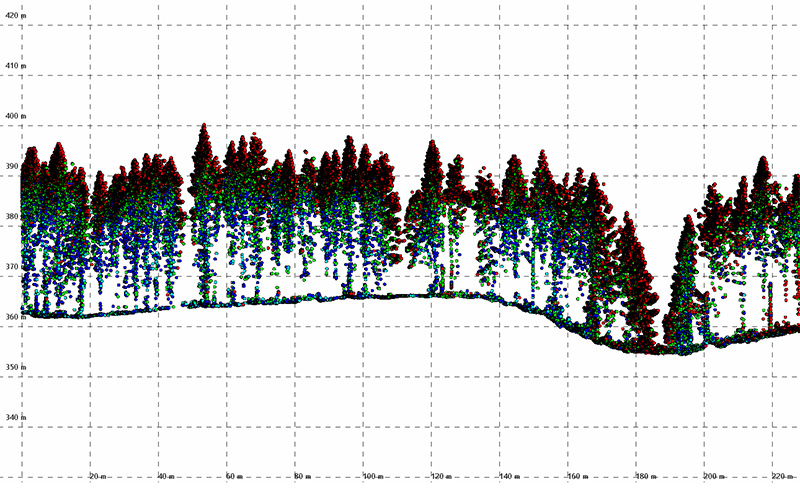

Long-range and Lightweight
Echo weighs just 1.2kg and can be operated from smaller UAVs such as the Freefly Astro, Inspired Flight IF800 and DJI M300/M350, while operating reliably at a regulatory limit of 120m / 400ft agl delivering an accuracy of up-to 1.5cm RMSZ, ranging precision of 5mm and 0.5mrad 1/e2 beam divergence resulting in clean and precise point clouds.
Accurate and Fast
Full undecimated georeferenced point clouds generated in real-time allowing infield verification combined with rapid post-processing through RESEPI’s “one-click” PC-Master Pro post-processing solution. Full-featured post-processing available with Teledyne Geospatial LMS Professional.
RESEPI SnapFit Payload Adapter
These smart adapters are specialized connectors tailored for specific drone models, enabling seamless integration and communication between the drones and the RESEPI GEN-II payload. They facilitate both power and data transmission, enhancing the versatility and functionality of the drones for various applications. Each adapter is engineered to meet the unique requirements of the corresponding drone model, ensuring optimal performance and compatibility.
For DJI Skyport
Made for the DJI M300 and M350. This adapter is designed to support power and data transmission with common DJI drones.
For FREEFLY Smart Dovetail
Designed for compatibility with the FREEFLY Astro. This adapter is designed to support power and data transmission with the FREEFLY Astro as well as other drones which use this industry adopted payload mounting interface.
For the Airpeak
This adapter was designed to allow for interfacing with the Sony Airpeak drone. This adapter was engineered to support direct communication with the drone allowing data transmission and power to be fed from the drone to the payload.
For WISPR Sky Scout
Designed for compatibility with the WISPR Sky Scout, this adapter supports both power and data transmission with the drone. Additionally, it features an optional FPV camera that integrates with the drone’s controller, providing enhanced control and real-time visibility for improved flight operations and quality control.
For WISPR Sky Scout (with FPV)
Designed for compatibility with the WISPR Sky Scout, this adapter supports both power and data transmission with the drone. Additionally, it features an optional FPV camera that integrates with the drone’s controller, providing enhanced control and real-time visibility for improved flight operations and quality control.
Features
Long Range & Canopy Penetration
270 m range to 20% reflectivity targets.
Up to 8 returns per pulse
Wide-Angle Perspective
90 deg × 20 deg field of view, 4 unique vertical scan angles
Integrated Colorization Camera
Integrated 5MP global shutter camera.
Optional 61MP camera
Precise Data
5 mm LiDAR ranging precision, 1.5 cm georeferenced vertical accuracy
Ultra-Lightweight Design
EchoONE is 1.2kg
High-Accuracy IMU
Inertial Labs KERNEL-210 tactical grade IMU
Specification
cm
System Accuracy
kHz
Laser Pulse Repetition Frequency
m
Max Measuring Range 20% targets
per puls
Maximum Returns
mm
Range Accuracy
mm
Precision, 1sigma
mm
Dimensions
kg
Weight
Watt
Power Consumption
