RESEPI User Manual
Table of contents


Definition of Main Menu Items #

General Settings Caution #

Adjustments to settings such as Lasers, Angular and Linear Offsets (LiDAR and Camera), and Camera Calibration should only be made by trained users or under the guidance of customer support as they related to the boresight of the unit and changing them will affect the various boresight calibrations.

File menu  #

  • New Project: The New Project File menu item clears the window of any currently loaded data and asks for the new trajectory and scan files. The new data will be loaded, and the trajectory will be displayed after processing (PPK only). Calibration values and offsets are taken from the LiDAR scan files; any filters are cleared to their preset defaults.
  • Open Project:The “Open Project” option replaces the current data with a newly selected project, loading its trajectory, scans, and any saved paths automatically. Calibration values, offsets, and filters are also retrieved from the project file.
  • Save Project:The Save Project File menu item saves the current state of the project to the project file.
  • Restart Project:The “Restart Project” option deletes all files and subfolders created during point cloud extraction and trajectory processing within the project folder. Users should back up important files before using this option.

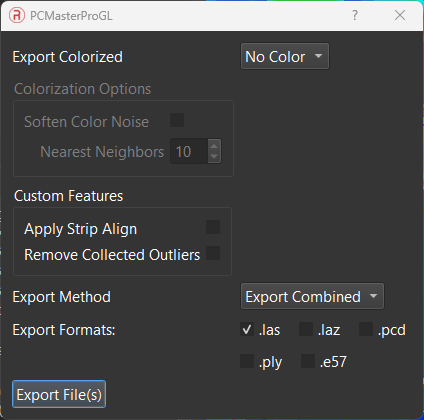

  • Export LAS File(s):

    The “Export LAS File(s)” function generates LAS files from the point cloud, using data from selected lasers and points enabled by cloud filters. Before exporting, the project is automatically saved. Options available for export include (Figure 1):

    • Export Colorized: Choose between uncolorized and colorized point clouds.
    • Colorization Options: Available when the colorized option is selected, offering blending tools for a uniform colorized point cloud.
    • Custom Features: Allows the application of StripAlign and noise filter options.
    • Remove Collected Outlier: The Remove Collected Outlier option must only be checked after the Remove Statistical Outlier tool has been run to find the outliers in the dataset. This option works independently from the “Remove Outliers from Visualization” option in the Remove Outliers Tool. This option must be checked to export the point cloud without the identified outliers.
    • Export Method: Choose to export paths as a single combined point cloud or as separate paths.
    • Export as File Type: Option to export in .las or .laz format.

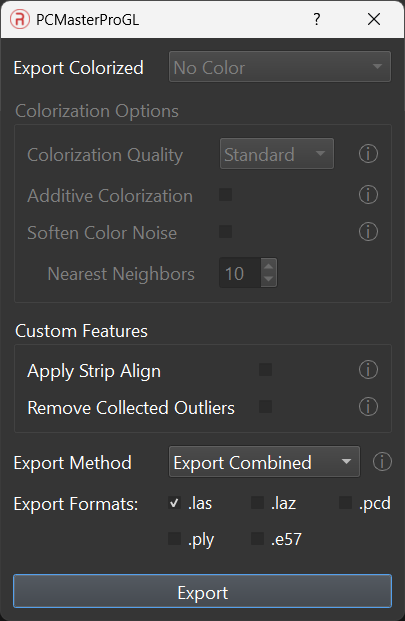

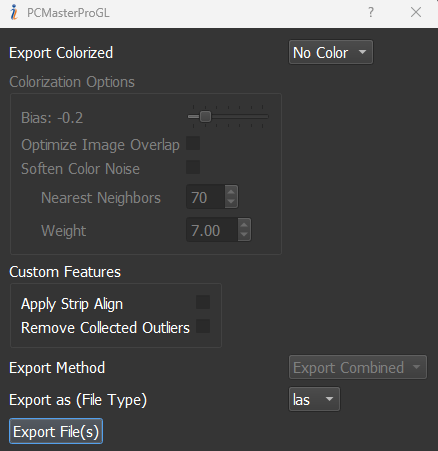

Figure 1. The Export and Colorization window in PCMasterPro.
Figure 1. The Export and Colorization window in PCMasterPro.

Strip Align Feature #

PCMasterPro includes the BayesMap Strip Align feature, which aligns point cloud strips for improved accuracy. This feature is most effective when used with surveyed Ground Control Points (GCPs) in the mission area.

Prerequisites: Ensure that you have a valid license for the Strip Align feature. Refer to the license section for more details.

Steps to Apply Strip Align:

  1. Select Trajectory Paths: Choose the passes or paths you want to apply Strip Align to. For full mission alignment, use the Auto Select Trajectory option to generate the necessary individual strips. Note that Strip Align cannot be applied to a single strip and corresponding point cloud; multiple strips must be selected.

  2. Upload Ground Control Points: Upload GCP locations using LiDAR Tools > Ground Control Points. You can use a text file to upload multiple GCP positions simultaneously. Accurate results with Strip Align depend on the availability of GCPs.

  3. Export LAS File(s): Navigate to File > Export LAS File(s). Select the options to Export with/without Color and Apply Strip Align.

  4. Completion: After processing, a confirmation message will appear at the bottom left of the window: “BayesMap Strip Align applied to Point Cloud with no Errors.”

  5. Output: The final merged point cloud will be exported to the Clouds folder. Note that corrected LAS files will not be displayed in PCMasterPro; they will be directly exported to the Clouds folder.

To observe the entire process in practice, we suggest viewing the video recording below.

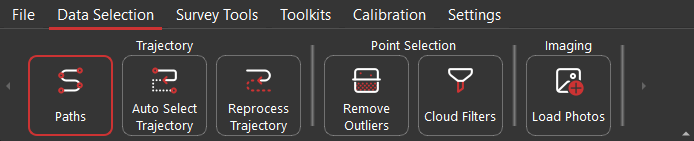

Lidar Tools menu  #

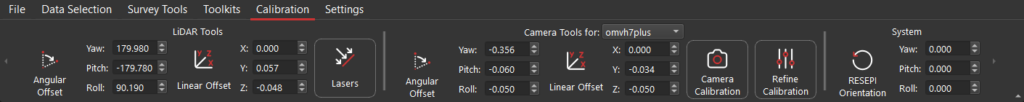

  • Angular Offset: Opens a panel for adjusting the angular alignment between the LiDAR and payload reference frame, with immediate application to the cloud.
  • Linear Offset: Displays and allows adjustments to the linear offset between the LiDAR and IMU reference points in the LiDAR payload reference frame.

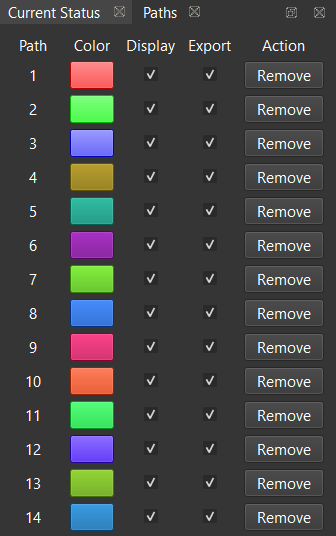

  • Paths: Lists available trajectory segments with display colors. Paths can be toggled for display and export or removed, as shown in Figure 2.
Figure 2. Path Selection window.
  • Lasers: Displays a list of lasers and their calibration values, allowing for adjustments. Changes are immediately reflected in the point clouds.
  • Cloud Filters: Opens a panel for configuring filters to visualize the point cloud accordingly, as shown in Figure 3. Available filters include:
    • Rotation angle filter: filter restricts the cloud to points obtained from lidar when its reported rotation angle is between the minimum(0 degrees) and the maximum value (360 degrees).
    • Distance filter: filter restricts the cloud to points within a certain distance range from the LiDAR in meters. This is useful for filtering out reflections from the car roof by setting the left value to some 2 meters and the right to some insanely large value.
    • Reflectivity filter: filter restricts the clouds to points within a certain reflectivity range.
    • Angular rate filter: filter restricts the clouds to points taken when the LiDAR payload was turning slower than the set value in degrees per second.
    • Easting, Northing, and Altitude filters: These filters simply reject points that are outside the set boundaries in meters.
    • Time of Week (s) filter: It does not populate points in the main window that are outside the set boundaries entered in seconds, based off the GPS Time of Week.
    • Custom Point Size: Allows the user to scale up or down the size of all points in the main window, the default size is 1

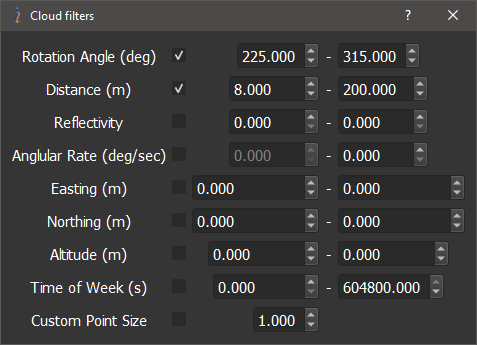

Figure 3. Cloud Filters window.

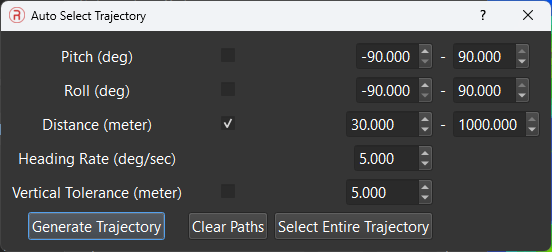

  • Auto Select Trajectory: Assists in selecting paths based on specified criteria such as pitch, roll, distance, heading rate, and vertical tolerance. Default values are provided for common flight plans.

    The fields within this window are described below:

    • Pitch adjusts the window of allowed pitch orientation (in degrees) along the trajectory.
    • Roll adjusts the window of allowed roll orientation (in degrees) along the trajectory.
    • Distance adjusts the minimum and maximum length a path should be (in meters) before it’s selected.
    • Heading Rate limits paths from the trajectory that contain quick movements with yaw by using the entered value as the maximum accepted rate (in degrees per second).
    • Vertical Tolerance limits the selected paths to a specific altitude. If the maximum altitude of the path minus the minimum altitude of the path exceeds the entered vertical tolerance, the path will not be selected.
    • Generate Trajectory, when selected will automatically highlight the paths that meet the criteria entered above and populate the visualizer for each path.
    • Clear Paths will delete all selected paths.
    • Select Entire Trajectory will select the default path which encompasses the entire recording time.

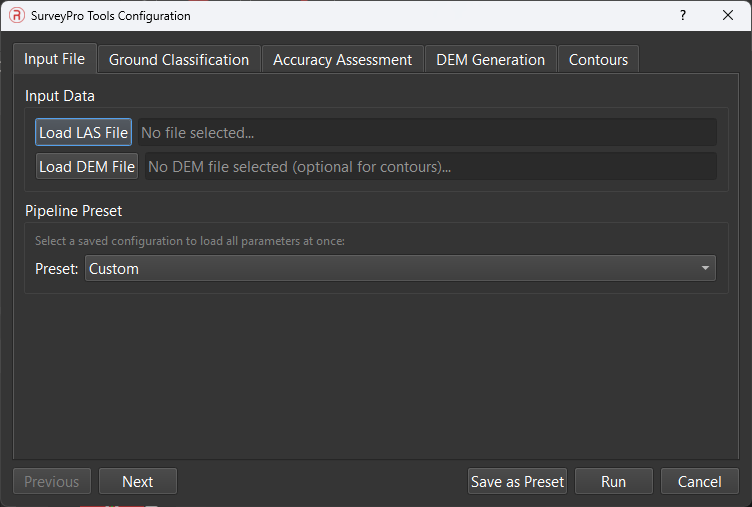

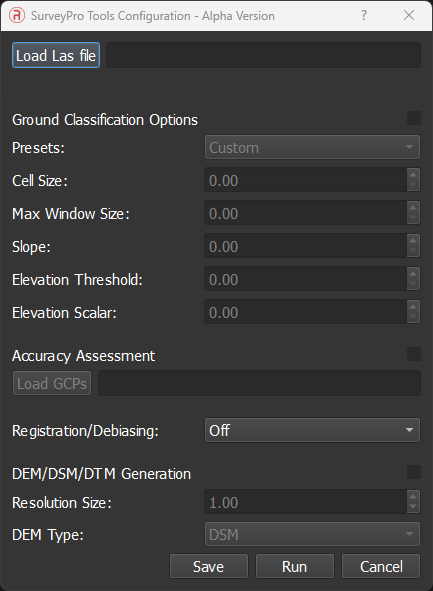

  • Ground Control Points: Allows users to input surveyed Ground Control Points (GCPs), displayed as white stars or plus signs in the point cloud. The positions of these points can be entered in the Ground Control Point menu as shown in Figure 4. GCPs can be added manually individually or as a group via a text file. If trying to add GCPs with a text file, the file should follow the specific format as seen in Figure 5. If using a text file, please make sure to name the file something other than “gcp.txt” as GCPs are stored to project folders with this name in the “gcp” folder.
Figure 4. GCPs Input Window.

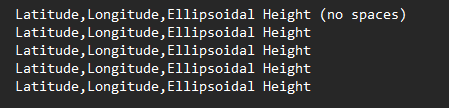

Figure 5. GCPs file structure.
  • Reprocess Trajectory: Enables users to reprocess a trajectory after making changes like updating base station files.
  • Remove Statistical Outlier:Remove Statistical Outlier allows the user to identify remove noise from the point cloud, as shown in Figure 6. Users can change the tolerances to correctly identify the points that are part of the noise and remove them from both visualiser and the exported point cloud. To remove the identified points from the visualiser, User needs to check the option “Remove Outliers from Visualisation” and to export a point cloud with the noise removal filter, User needs to check “Remove Collected Outliers” option in the Export menu.

    • Number of Neighbours to analyse takes input (of values more than 1) of how many neighbours of each point must be scanned to be within a certain statistical bound. The larger the number the more processing time it takes as it must go over more points per iteration.

    • Range Multiplier takes input (in increments of 0.1) of how many standard deviations of the average distance between the number of neighbors being scanned through, are allowed.

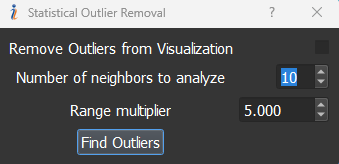

Figure 6. Remove Statistical Outlier window.

Camera Tools #

  • Load Photos: Load the photos from the camera folder into the current project. If user attempts to export the colorized point cloud prior to loading the photos, PCMasterPro will automatically load the photos for export.
  • Angular Offsets: Displays and allows adjustments to the angular alignment between the Camera and the payload reference frame.
  • Linear Offset: Displays and allows adjustments to the linear offset between the Camera and IMU reference points.

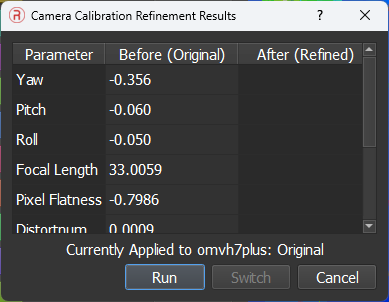

  • Camera Calibration: Allows adjustments to camera image parameters to compensate for camera sensor and lens characteristics.

    The settings regularly adjusted are:

    • Focal Length – is measured in millimeters and is dependent on the camera lens that is used and camera manufacturer restrictions.
    • Pixel flatness – is measured in ppm and is the difference between vertical dimension and horizontal dimension of a pixel. Enter in the pixel flatness as given by camera manufacturer (default value is 0).
    • DistortNum – restricts the area of overlay for the camera images projected onto cloud points.
    • DistortDen – restricts the area of overlay for the camera images projected onto cloud points.
    • Photo Opacity – changes the opacity of the selected image on a scale of 0 to 1, with 0 being completely transparent and 1 being completely opaque.
      • Note: This feature is useful to see how images will be used together to perform “painting” and creation of the colorized point cloud.

These values should not be tampered with unless under the guidance of customer support as they related to the boresight of the unit and changing them will affect the various boresight calibrations.

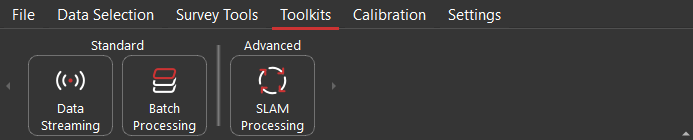

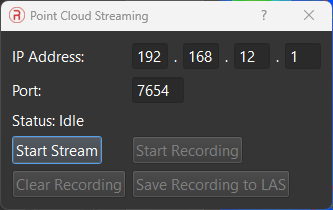

Batch Processing #

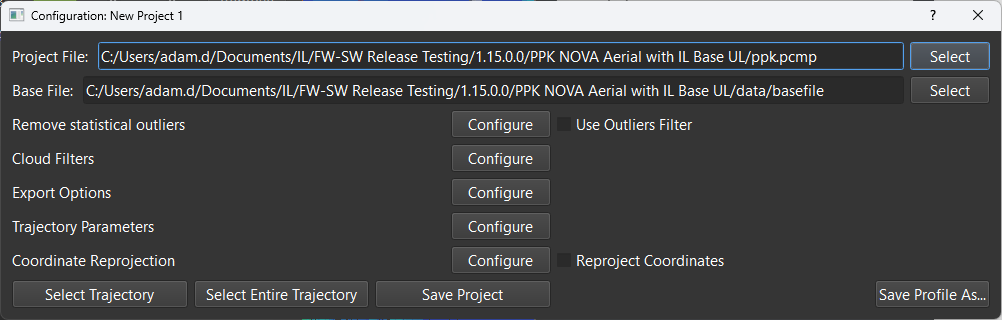

Batch Processing is designed for ease of use and quick software processing for users with multiple datasets to process. It allows users to easily select their desired settings and final output formats, as well as finalization tools. Batch Processing window shown in Figure 7.

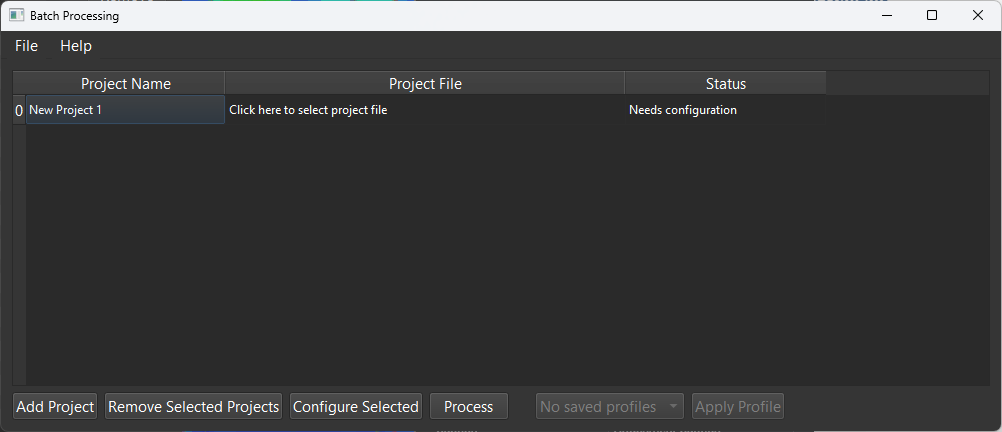

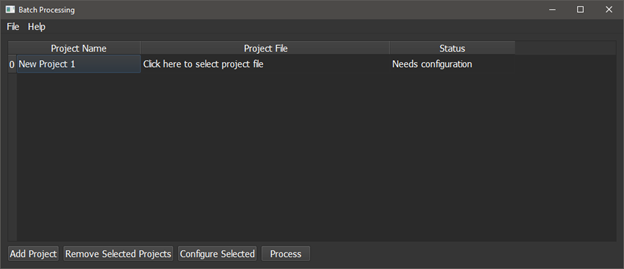

Figure 7. Batch Processing Window.

Settings #

  • RESEPI Orientation: Displays the payload orientation in the vehicle’s reference frame. Changes should only be made if there was an initial setup error.

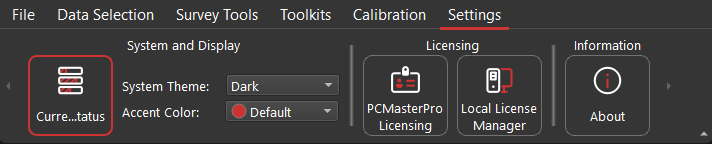

  • Color Themes: Provides options for customizing the interface appearance, with Regular and Dark themes available.
  • Local License Manager: Manages the license required for post-processing navigation in PCMasterPro. Users can check the status, revoke, or enter a new license.

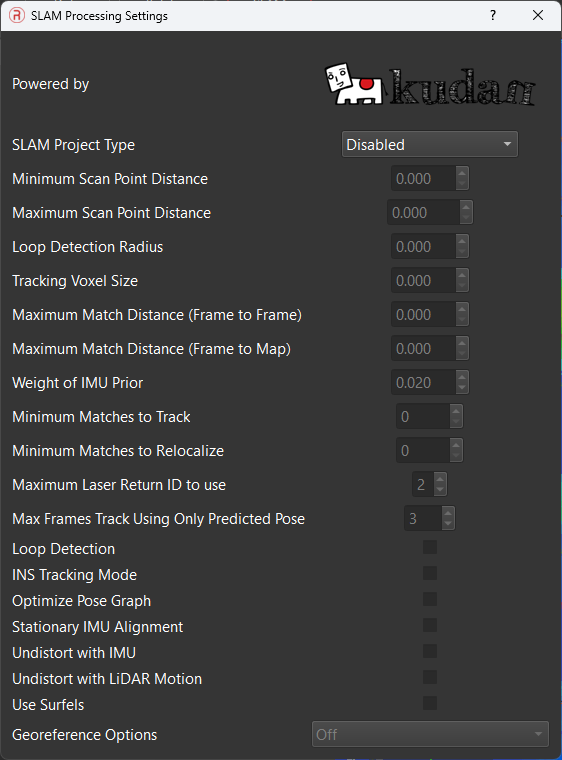

  • PCMasterPro Licensing: Allows the entry and management of additional licenses for features like BayesMap Strip Align and SLAM. Displays active licenses, their types, expiration dates, and options for removal.

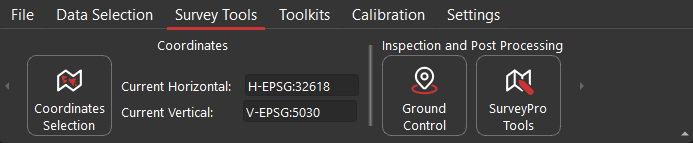

  • Coordinates:

    The Coordinates menu in PCMasterPro allows users to reproject point clouds into a desired geoid or coordinate system. By default, PCMasterPro projects point clouds using the WGS 84 ellipsoid and UTM coordinate system. This new feature replaces the earlier GEOIDS option found in PCMasterPro v1.4.0.0 and earlier versions, offering expanded options for reprojection, including both horizontal and vertical systems.

    Steps to Reproject a Point Cloud:

    1. Open Project: Open the ppk.pcmp file and load the project in PCMasterPro.

    2. Access Coordinates Menu: Navigate to Tools and select Coordinates Menu.

    3. Select Coordinate Systems: In the available coordinates dialogue box, select the desired coordinate systems, as shown in Figure 8. Only systems applicable to the location where the dataset was captured will be available. Choose the desired horizontal and vertical models from the respective tabs. The selected models will appear in the New Horizontal Model and New Vertical Model fields. You can search for models by typing part of the model names or their EPSG numbers. The Current Model field will display the model currently used for the point cloud.

    4. Reproject the Point Cloud: Click the Reproject button to begin the conversion process.

    5. Verify Output: If the reprojection is successful, a new trajectory file will be saved in the convertedTrajectories folder. This folder will also contain an information file detailing the coordinate systems used.

    Note: Some coordinate systems require grid files in .tif format. If you attempt to convert to such a system without these files, PCMasterPro will display an error. Ensure you have the necessary grid files, which can be acquired and placed in the /proj folder within the PCMasterPro installation directory. A common resource for obtaining these grid files is https://cdn.proj.org/.

    For example to Reproject in NAD83(2011) in Geoid 18, you would need to download and place these two grid files in your /proj folder

    • us_noaa_g2018p0.tif – USA – Puerto Rico and the Virgin Islands – NAD83(2011) (EPSG:6319) to PRVD02 height (EPSG:6641). Last modified: 2020-01-24
    • us_noaa_g2018u0.tif – USA – Conterminous – NAD83(2011) (EPSG:6319) to NAVD88 height (EPSG:5703). Size: 16.0 MB. Last modified: 2020-01-24

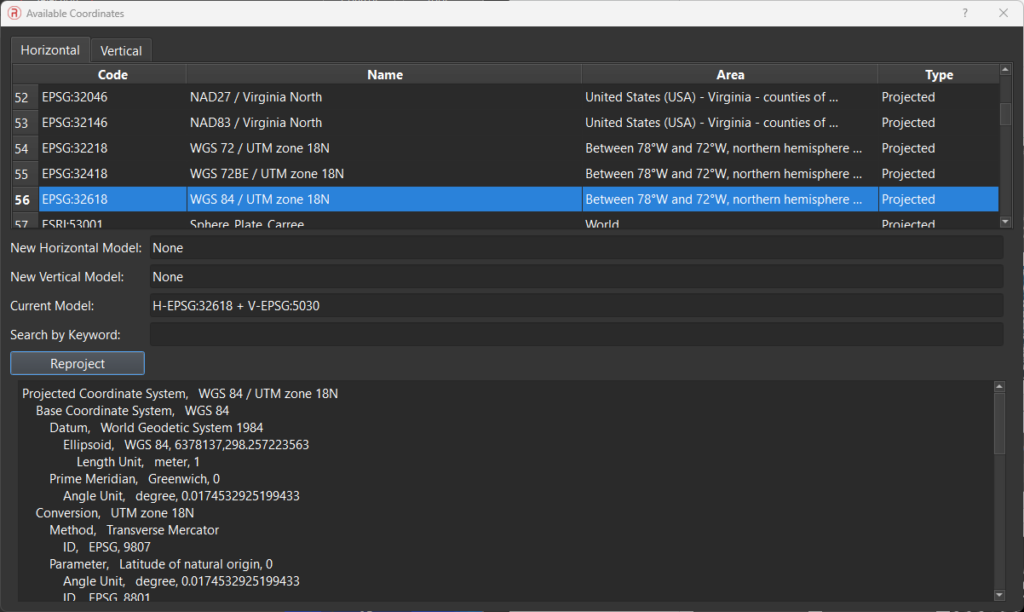

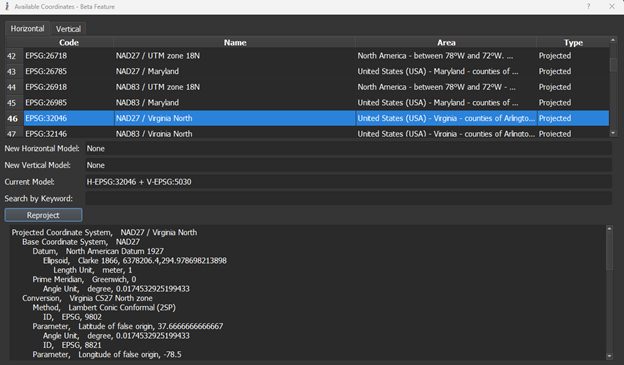

Figure 8. Coordinates menu.

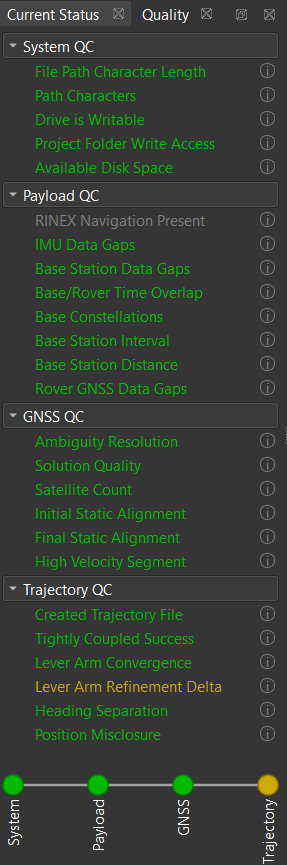

  • Hide Status Menu: This button toggles the Status bar to show or hide.
