INTRODUCTION #
As EchoOne has a larger power requirement than standard power configuration delivered by the default power port on the DJI M300/350, an additional power cable is required to satisfy the requirement and power the scanner. This guide will help you in connecting the cable correctly on the UAV to work with EchoOne
STEPS TO CONNECT THE ECHOONE POWER CABLE #

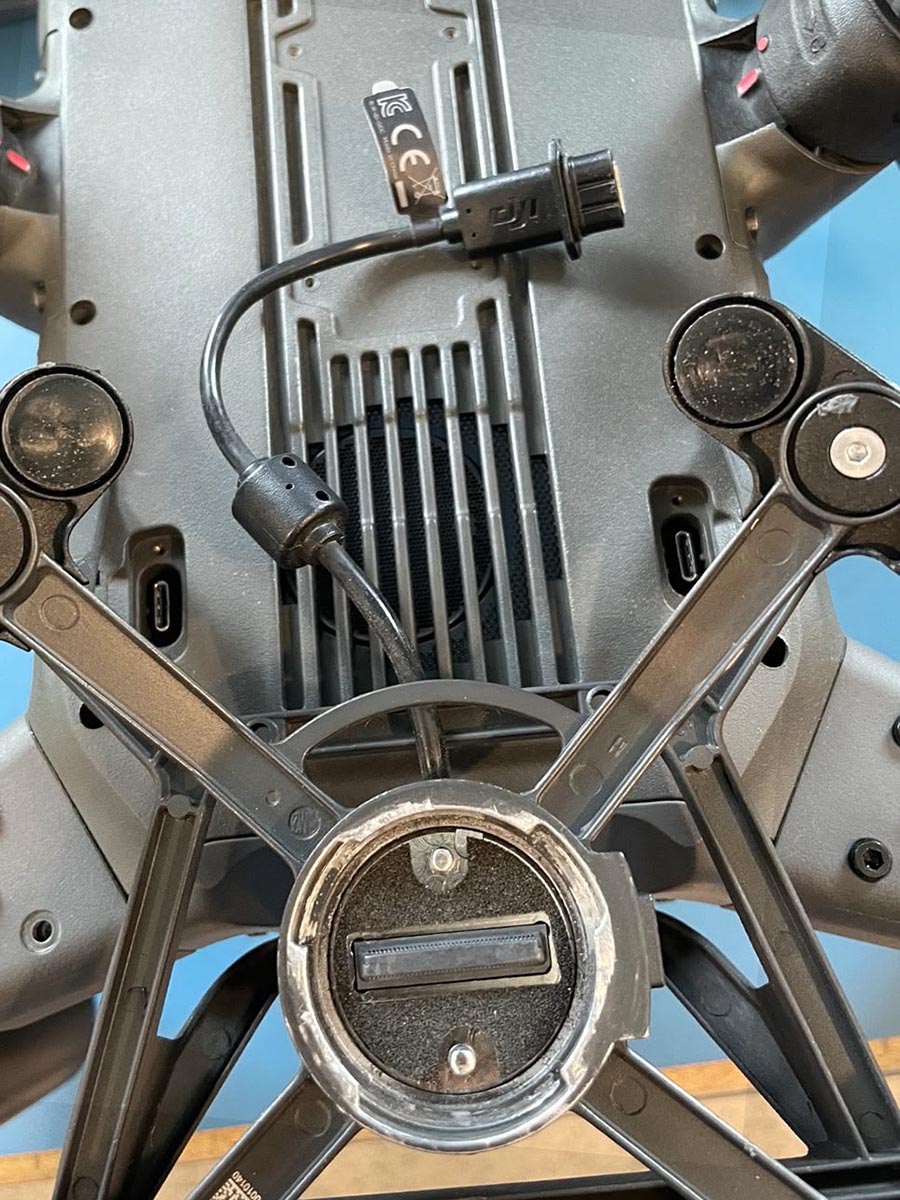

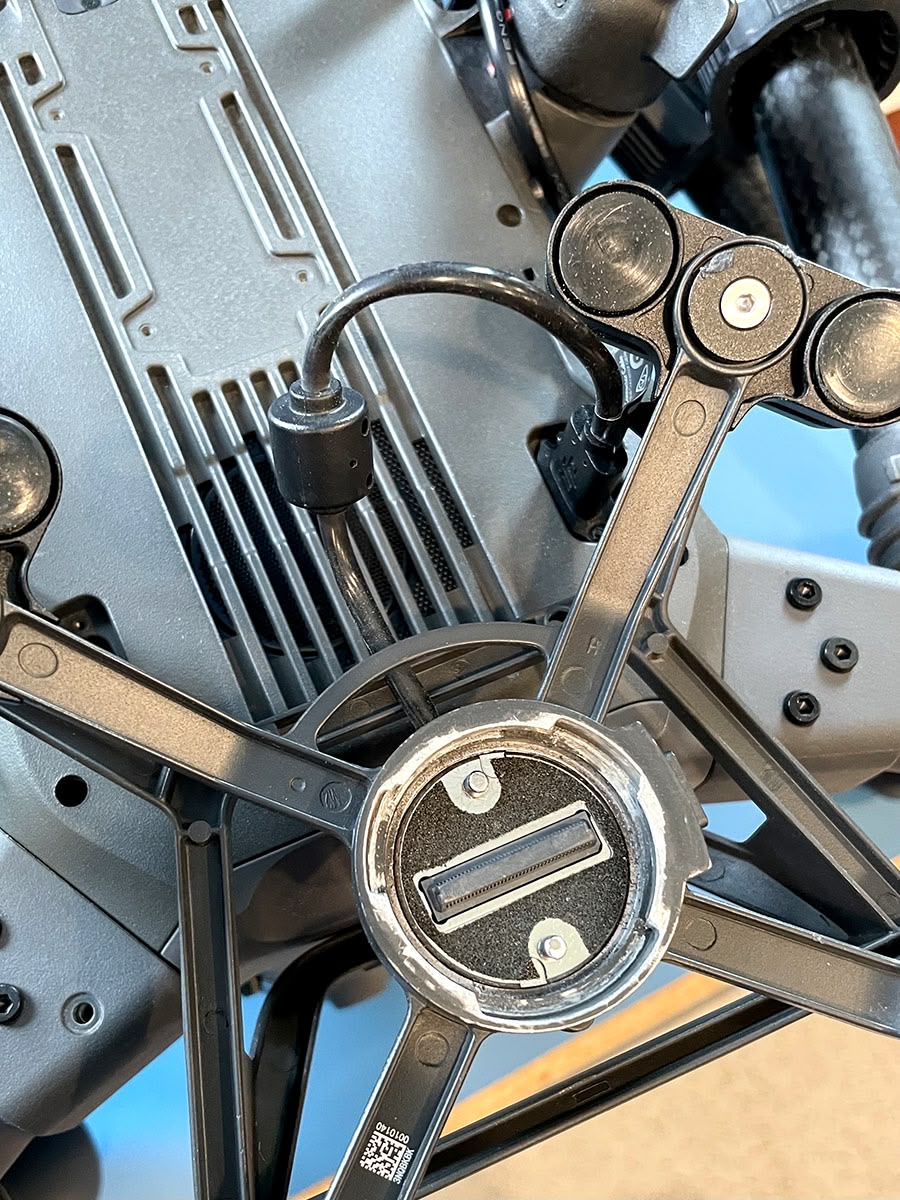

Step 1 : Locate the Gimbal and the Gimbal power cable and disconnect it from the underside port.

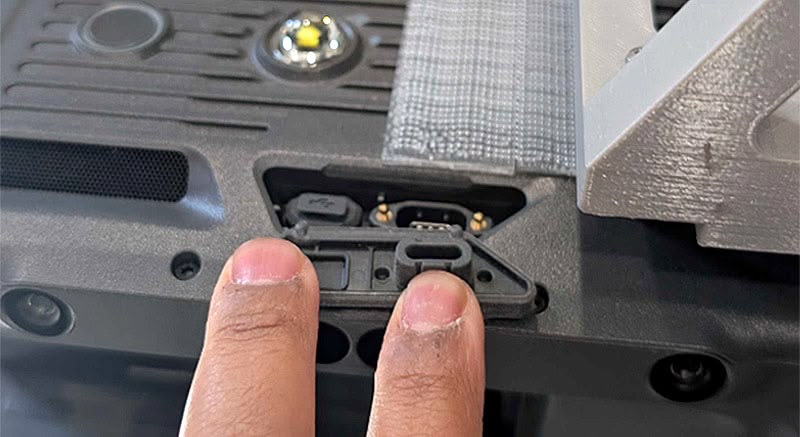

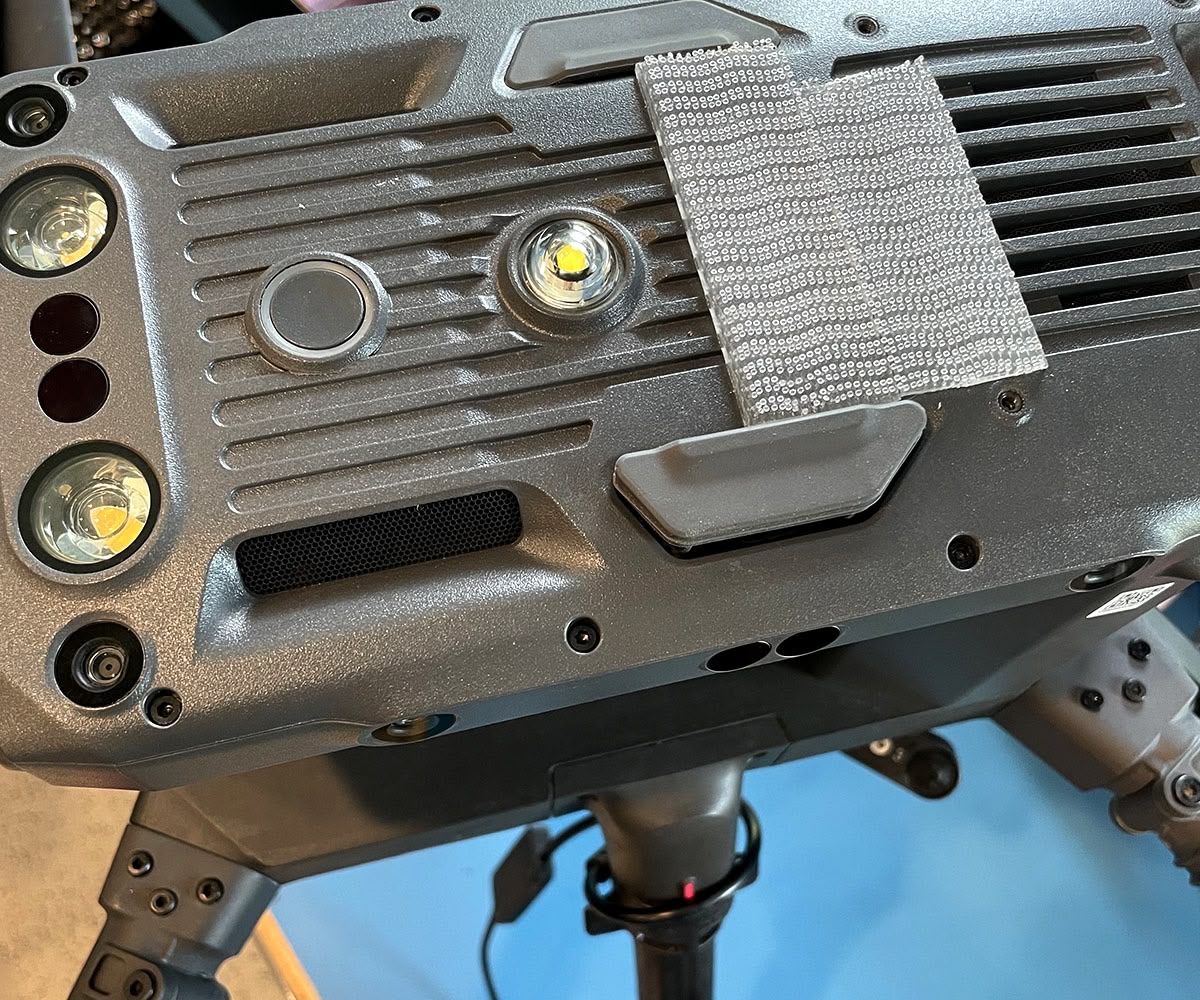

Step 2 : Locate the extra power port on the top of the DJI M300/350

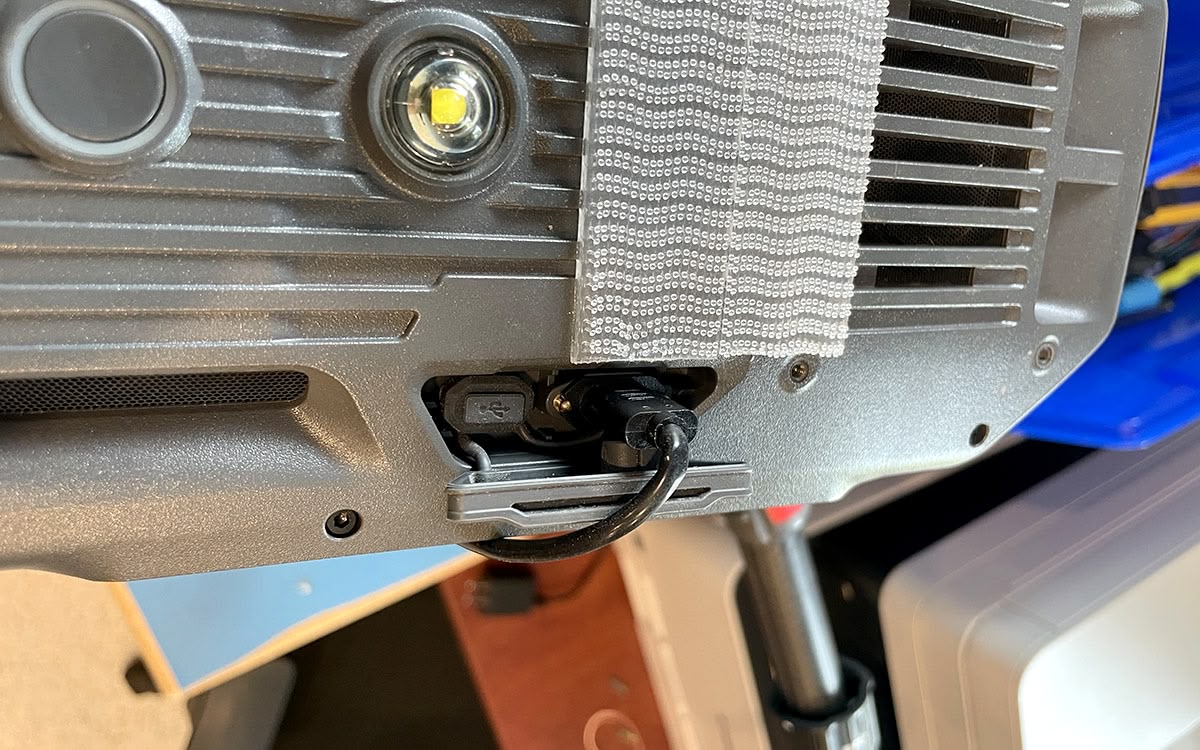

Step 3 : Connect the EchoOne Power cable (CMP05151) to the top port

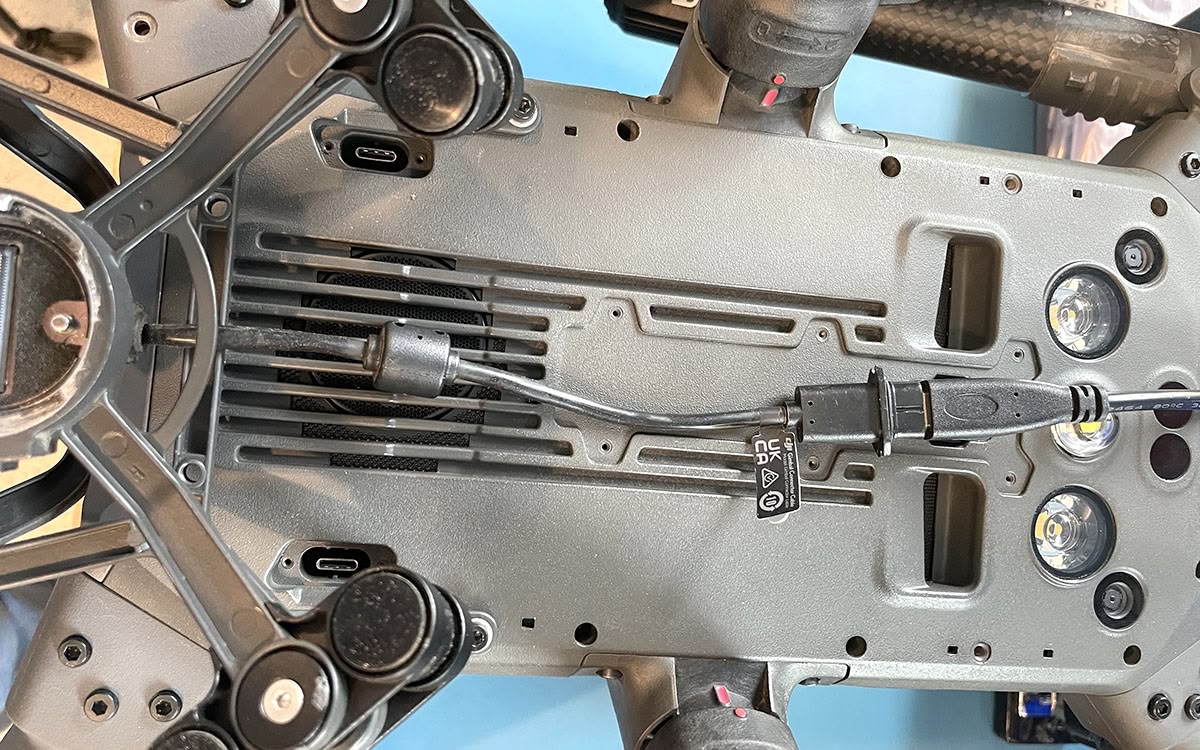

Step 4 : Connect the EchoOne Cable (CMP05151) male part to the female part of the disconnected gimbal cable
Step 5 : You are good to fly. Please make sure the cable is tightly wound around the legs of the UAV and isnt hanging around.
